FBAR滤波器

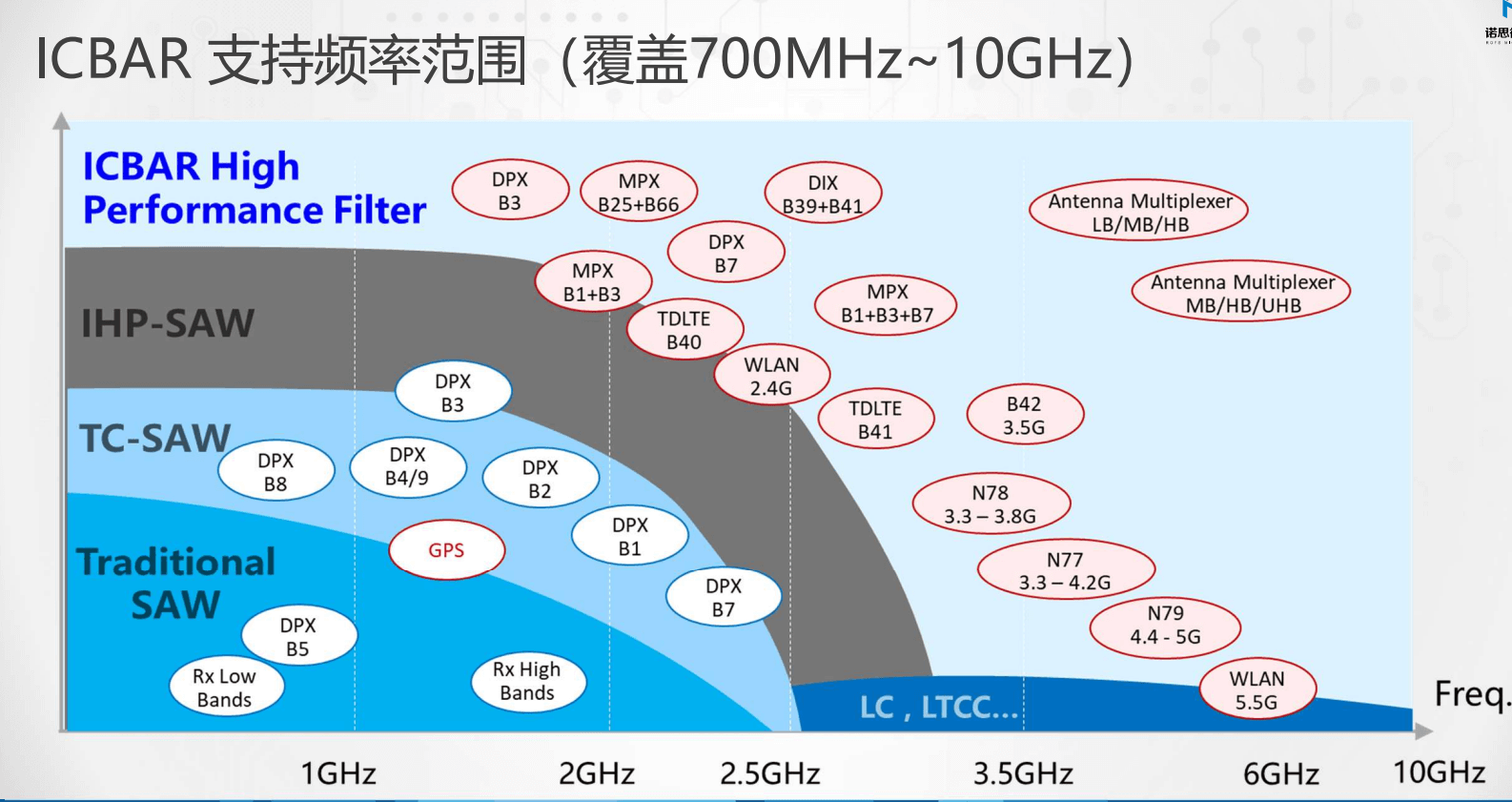

FBAR滤波器：薄膜体声波谐振器(FBAR)技术是近些年发展起来的新一代无线射频滤波器、双工器、和多工器解决方案，在无线通讯中扮演的角色越来越重要。采用硅衬底的微机电系统(MEMS)制造技术的FBAR射频滤波器性能卓越，尺寸微小，适应未来5G需求。
对标：翼尚采用的FBAR工艺滤波器产品，品质对标Qorvo、Avago、且整体性能好于Murata、TDK、太阳诱电。
产品结构
小封装：1411、1109、0906小尺寸封装，适应产品小型化的需求。
详细参数
| 产品名称 | 类型 | 产品类型 | 频率范围(MHz) | 封装尺寸(mm) | 状态 | 规格版本 |
| FP2413E | Filter | WIFI 2.4G Filter | 2402-2482 | 1.1x0.9x0.59 | Mass Production | RevD |

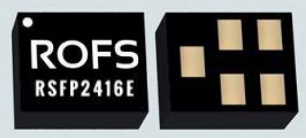

| FP2416E | Filter | WIFI 2.4G Filter | 2402-2482 | 1.1x0.9x0.59 | Mass Production | |
| FP2403D | Filter | WIFI 2.4G Filter | 2402-2482 | 1.4x1.1x0.59 | Mass Production | |
| FP2406D | Filter | WIFI 2.4G Filter | 2402-2482 | 1.4x1.1x0.59 | Mass Production | |
| FP2421E | Filter | WIFI 2.4G Filter | 2402-2471 | 1.1x0.9x0.6 | Mass Production | |
| FP2011E | Filter | B34 Filter | 2010-2025 | 1.1x0.9x0.6 | Mass Production | |
| FP1920E | Filter | B39 Filter | 1880-1920 | 1.1x0.9x0.6 | Mass Production | |
| FP2313E | Filter | B40 Filter | 2300-2400 | 1.1x0.9x0.6 | Mass Production | |
| FP2316E | Filter | B40 Filter | 2300-2400 | 1.1x0.9x0.6 | Mass Production | |
| FP2319E | Filter | B40 Filter | 2300-2400 | 1.1x0.9x0.6 | Development | |
| FP2303D | Filter | B40 Filter | 2300-2400 | 1.4x1.1x0.60 | Mass Production | |
| FP2602D | Filter | B41F Filter | 2496-2690 | 1.4x1.1x0.65 | Mass Production | |
| FP2603D | Filter | B41F Filter | 2496-2690 | 1.4x1.1x0.74 | Mass Production | |
| FP2651E | Filter | B41F Filter | 2496-2690 | 1.1x0.9x0.6 | Mass Production | |
| FP2604E | Filter | B41F Filter | 2496-2690 | 1.1x0.9x0.6 | Development | |
| FP2521E | Filter | B41N_120M Filter | 2555-2675 | 1.1x0.9x0.59 | Mass Production | |
| FP2511E | Filter | B41N_120M Filter | 2535-2655 | 1.1x0.9x0.60 | Mass Production | |
| FP2516E | Filter | B41N_120M Filter | 2535-2655 | 1.1x0.9x0.6 | Development | |
| FP2511D | Filter | B41N_120M Filter | 2535-2655 | 1.4x1.1x0.59 | Mass Production | |
| FP2531E | Filter | B41N_140M Filter | 2535-2675 | 1.1x0.9x0.60 | Mass Production | |
| FP2551D | Filter | B41N_160M Filter | 2515-2675 | 1.4x1.1x0.61 | Mass Production | |
| FP1795D | Filter | B62 Filter | 1790-1800 | 1.4x1.1x0.6 | Mass Production | |
| FD1950C | Duplexer | B1 Duplexer | TX: 1920~1980 RX: 2110~2170 | 1.8×1.4×0.61 | Mass Production | |
| FD1950N | Duplexer | B1 Duplexer | TX: 1920~1980 RX: 2110~2170 | 1.6×1.2×0.61 | Mass Production | |
| FD1953C | Duplexer | B1 Duplexer | TX: 1920~1980 RX: 2110~2170 | 1.8x1.4x0.65 | Engineer Sample | |
| FD1881C | Duplexer | B2 Duplexer | TX: 1850-1910 RX: 1930-1990 | 1.8x1.4x0.61 | Mass Production | |
| FD1881N | Duplexer | B2 Duplexer | TX: 1850-1910 RX: 1930-1990 | 1.6x1.2x0.61 | Development | |
| FD1702C | Duplexer | B3 Duplexer | TX: 1710-1785 RX: 1805-1880 | 1.8x1.4x0.61 | Mass Production | |
| FD1730C | Duplexer | B3 Duplexer | TX: 1710-1785 RX: 1805-1880 | 1.6x1.2x0.61 | Mass Production | |
| FD1730C | Duplexer | B4 Duplexer | TX: 1710~1755 RX: 2110~2155 | 1.8×1.4×0.61 | Engineer Sample | |
| FD1730N | Duplexer | B4 Duplexer | TX: 1710~1755 RX: 2110~2155 | 1.6×1.2×0.61 | Engineer Sample | |
| FD0837C | Duplexer | B5 Duplexer | TX: 824-849 RX: 869-894 | 1.8x1.4x0.65 | Engineer Sample | |
| FD2503C | Duplexer | B7 Duplexer | TX: 2500~2570 RX: 2620~2690 | 1.8×1.4×0.61 | Mass Production | |
| FD2503N | Duplexer | B7 Duplexer | TX: 2500~2570 RX: 2620~2690 | 1.6×1.2×0.61 | Mass Production | |
| FD2505C | Duplexer | B7 Duplexer | TX: 2500~2570 RX: 2620~2690 | 1.8x1.4x0.61 | Engineer Sample | |
| FD2505N | Duplexer | B7 Duplexer | TX: 2500~2570 RX: 2620~2690 | 1.6x1.2x0.61 | Engineer Sample | |
| FD2512C | Duplexer | B7 Duplexer | TX: 2500~2570 RX: 2620~2690 | 1.8×1.4×0.61 | Mass Production | |
| FD0892C | Duplexer | B8 Duplexer | TX: 880-915 RX: 925-960 | 1.8x1.4x0.65 | Engineer Sample | |
| FD1902N | Duplexer | B25 Duplexer | TX: 1850-1915 RX: 1930-1995 | 1.6x1.2x0.61 | Development | |
| FD1750C | Duplexer | B66 Duplexer | TX: 1710~1780 RX: 2110~2200 | 1.8×1.4×0.61 | Engineer Sample | |

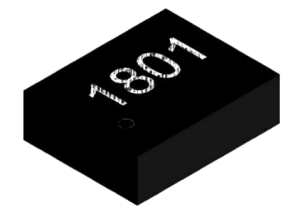

| FM1801A | Quadplexer | B1+3 Quadplexer | TX:1920~1980; RX:2110~2170 TX:1710-1785; RX:1805-1 | 2.5×2.0×0.75 | Mass Production |
产品优势
- 1. FBAR工艺，相对于SAW工艺，性能更好，如插入损耗和带外抑制
- 2. SAW滤波器对温度敏感、热稳定性和散热性较差，相对于SAW工艺，FBAR温度特性更好
- 3. 滤波器其尺寸大小是随着频率的升高而减小的
- 4. PIN to PIN 考虑替换国外品牌，PIN to PIN是最快的方式，方便在目前市场元器件供应紧张的情况下，快速替换
- 5. 交期、供货稳定性：相对于国外品牌，交期短，翼尚交期一般在12周而国外品牌交期在16周以上，且供货相对稳定，特别在目前贸易战和疫情背景下。
